REC Announcements

The current news can be retrieved from the navigation bar by clicking on the News button.

To view the base Russell Engine/Generator video click on this LINK

NEW VIDEO WASTED HEAT ENERGY

This video, Wasted Heat Energy produced by Russell Energy Corporation, details all energy sources, depicted in a graphic chart developed by the Lawrence Livermore National Laboratory and the US Department of Energy in 2017. It shows not only the various distributive uses but also the immense amount of wasted heat energy in the United States. The video also projects the same wasted heat energy on a global scale. Although not a mainstream topic of discussion, the Russell Energy Corporation believes that this global wasted heat energy is a major contributor to global warming. The Russell Energy Corporation, through its patented Engine/Generator technology, offers a solution to wasted heat energy. _____________________________________________________

UPDATED WHITE PAPER

The Russell Energy Corporation White Paper has been updated and can be viewed by clicking on this link White Paper _____________________________________________________


Future Impact
Energy Conservation

National Security

Environmental Impact

Energy Independence

Power For All

GDP Economic Advantages
Eng/Gen HomeRussell Engine Generator Advantages

Consumer Advantages

  • Inexpensive to purchase
  • Inexpensive to operate
  • Inexpensive to maintain
  • Plug-and-Play replaceability
  • Reduced fuel costs
  • Reduced emissions
  • Vibration free operation
  • Increased dependability
  • Increased durability
  • Increased service life
  • Multi function security (i.e. The Eng/Gen used in a vehicle application can provide emergency electrical power for home use, or for sale to the grid.)

Manufacturing Advantages

  • Low parts count
  • No undeveloped technologies required
  • No dynamic seals (except for piston rings)
  • Most parts are cast with minimal finishing
  • No exotic materials
  • No exotic procedures
  • No unusually close tolerances
  • No unrealistic assembly procedures

Shaftless Design Advantages

  • Low parts count
  • Vibration free operation
  • No undeveloped technologies required
  • No dynamic seals (except for piston rings)
  • Most parts are cast with minimal finishing
  • 4 x the number of combustions (or more), per cylinder during a single revolution (greater power density than conventional 4 cycle engines)
  • Direct conversion of rotational energy into electrical energy
  • No torque transferred outside the Eng/Gen case
  • Sealed construction (waterproof & dustproof)
  • Reduced internal energy losses, due to:
    • elimination of vibration
    • optimized piston movement
    • free escape of exhaust gasses
    • low pressure purge and intake cycle
    • direct conversion to electrical energy
  • Reduced internal friction losses, due to:
    • two cycle piston movement
    • low number of moving parts
    • low RPM operation
    • low friction bearings
    • elimination of mechanical final drive

Environmental Advantages

  • Increased energy output (per unit of fuel)
  • Reduced fuel usage (based on output)
  • Reduced carbon dioxide emissions
  • Reduced nitrogen oxide emissions
  • Reduced heat emissions
  • Wasted fuel consumption is eliminated (in vehicular use with Series Hybrid Drive System)
  • Ideal for future (zero pollution) hydrogen fueled applications

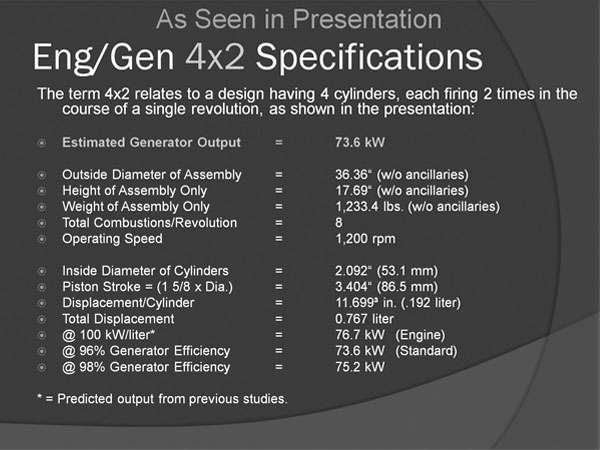

Eng/Gen 4 X 2 Specifications

Russell Engine Generator 4 by 2 specifications

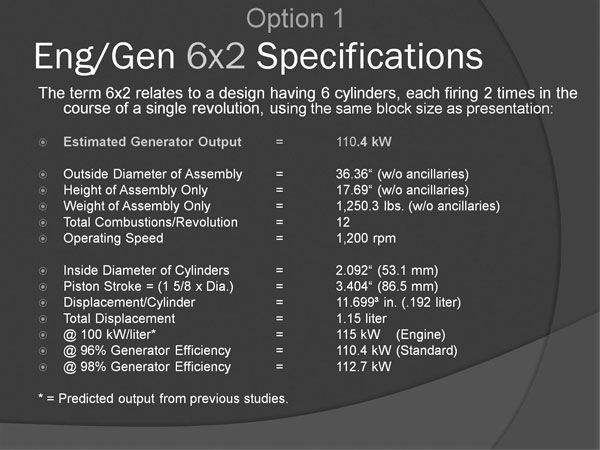

Eng/Gen 6 X 2 Specifications

Russell Engine Generator 6 by 2 specifications

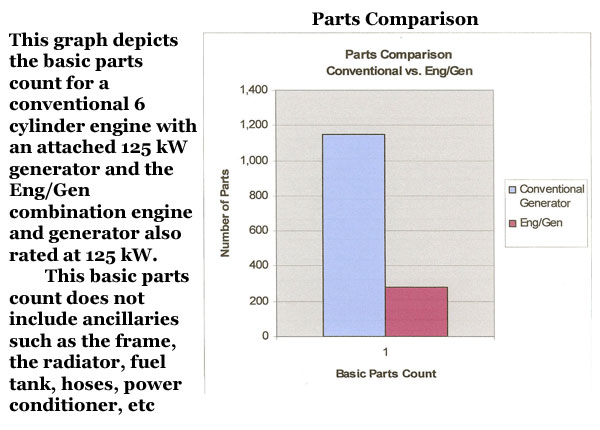

Parts Comparison With 125kW Diesel Engine and Generator

Russell Engine Generator parts comparison

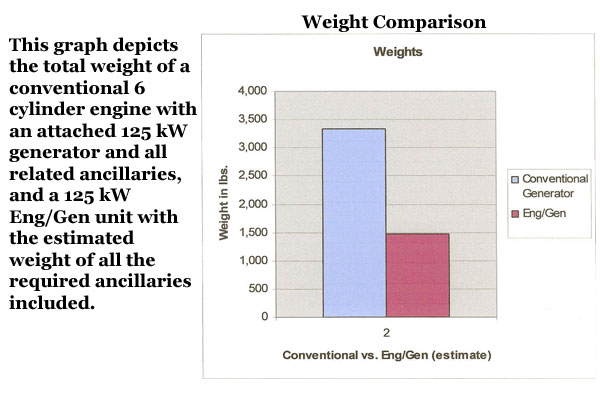

Weight Comparison With 125kW Diesel Engine and Generator

Russell Engine Generator weight comparison

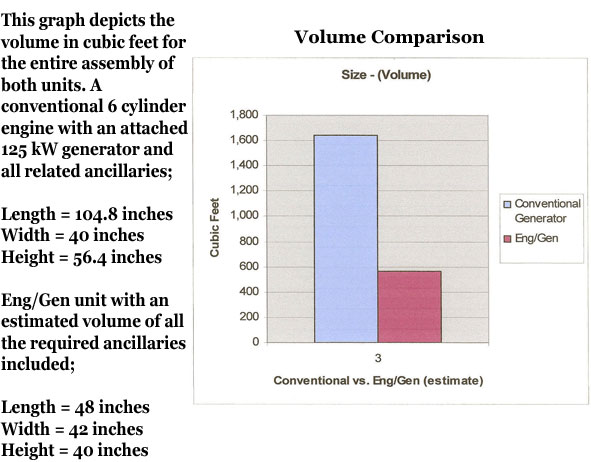

Volume Comparison With 125kW Diesel Engine and Generator

Russell Engine Generator volume comparison
